JST
Number Of Poles
- 2
| Article Number | BHSR-02VS-1(N) |
| Number Of Contacts | 2 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 3.5mm Pitch Disconnectable Crimp Style (Wire to Wire) |
| Connection Type | Wire to Wire Connectors |
| Pitch / Style | 3.50 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 1,4 V |
Eigenschappen verschillen tussen varianten en subvarianten

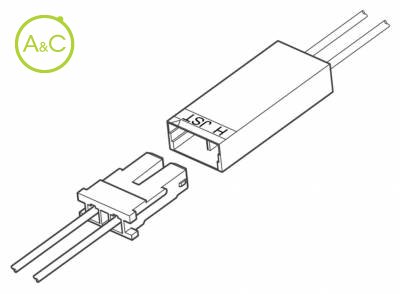

Wire-to-wire version connectors, designed for connecting liquid crystal display back light lamp to their starters.
Compact and applicable to high voltage
The BHS connector is more compact than JST's BHM connector, yet applicable to the high voltage, with the contact lance mechanism.
Adopt wide large for socket contact
In order to correspond to miniaturization and high voltage, wide large for socket contact is adopted.
Standards
UL Recognized E60389
CSA Certified LR20812
Wire to Board Version
See link; https://www.jst.co.uk/productSeries.php?pid=171&cat=30
RoHS Compliant
