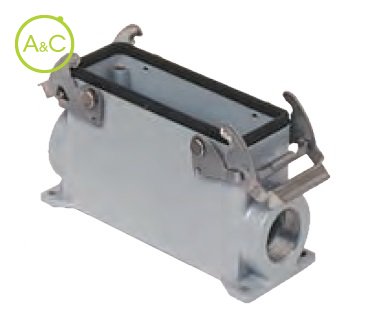

Surface mounting housings, high construction

With 2 levers in stainless steel
Alumunium, PG entry

C7AP 10.21

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

Entry

1xPG21
1xPG29
2xPG21
2xPG29

Article Number	C7AP 10.21
Protection Degree	IP67
Material Housing	Aluminium
Height	73 mm
Length	93.5
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules; CDSH 18 P + PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	57 mm

Article Number	C7AP 10.29
Protection Degree	IP67
Material Housing	Aluminium
Height	73 mm
Length	93.5
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules; CDSH 18 P + PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	57 mm

Article Number	C7AP 10.221
Protection Degree	IP67
Material Housing	Aluminium
Height	73 mm
Length	93.5
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules; CDSH 18 P + PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Two-sided
Width	57 mm

Article Number	C7AP 10.229
Protection Degree	IP67
Material Housing	Aluminium
Height	73 mm
Length	93.5
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules; CDSH 18 P + PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Two-sided
Width	57 mm

Eigenschappen verschillen tussen varianten en subvarianten
