Ilme
Entry
- 1xPG21
- 1xPG29

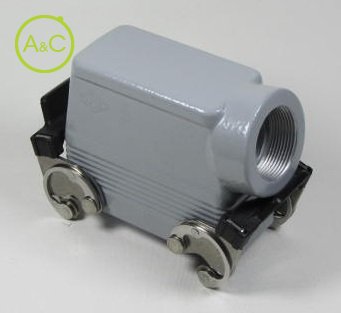

| Article Number | CAO 16 X* |
| Protection Degree | IP66 |
| Material Housing | Aluminium |
| Height | 76 mm |
| Remark | May be combined with enclosures: CHI 16 CS; CHI 16 CP; CHI 16 C; CHP 16 CS; CHP 16 CP; CHP 16 C; CAP 16 CS; CAP 16 CP; CAP 16 C; MHP 16 CS; MHP 16 CP; MAP 16 CS; MAP 16 CP |
| Length | 93.5 |
| Extra Information |
Corrosion resistant UV resistant With interlocking device |
| Coating Housing | With powder coating |
| Required Inserts | CD 40 P + PE; CDD 72 P + PE; CDS 27 P + PE; CSH 16 P + PE; CNE-CSE 16 P + PE; CCE 16 P + PE; CSS 16 P + PE; CQE 32 P + PE; CQEE 40 P + PE; CMCE-CMSH 6+2 (aux) P + PE; CP 6 P + PE; CX 6/36 and 12/2 P + PE; CX 4/0 and 4/2 P + PE; Mixo 4 modules; CDSH 27 P + PE; CX 6+12P + PE |
| Locking Mechanism | Double locking levers |
| Operation Lower Temperature | -40 °C |
| Operation Upper Temperature | 125 °C |
| Position Cable Feed | Side entry |
| Width | 59 mm |
Eigenschappen verschillen tussen varianten en subvarianten
