- General

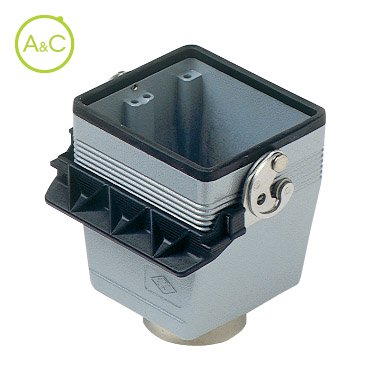

Article Number | CHV 32 LG |
Protection Degree | IP66 |
Material Housing | Aluminium |
Height | 112.5 mm |
Length | 153 |
Extra Information |
Corrosion resistant UV resistant With interlocking device |
Coating Housing | With powder coating |
Required Inserts | CD 80P+PE; CDD 144P+PE; CDS 54P+PE; CSH 32P+PE; CNE-CSE 32P+PE; CCE 32P+PE; CSS 32P+PE; CQE 64P+PE; CMCE 12+4(aux)PE; CME 12+4(aux)P+PE; CMSH 12+4(aux)P+PE; CP 12P+PE; MIXO 4+4 modules; CDHS 54 P + PE |
Locking Mechanism | Single locking lever |
Operation Lower Temperature | -40 °C |
Operation Upper Temperature | 125 °C |
Position Cable Feed | Top entry |
Width | 82.5 mm |
Eigenschappen verschillen tussen varianten en subvarianten
