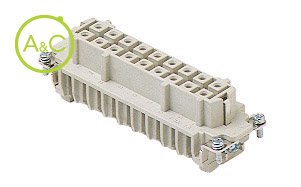

Inserts, 32 + 4(aux)P + PE, Crimp connection

Heeft u nog vragen over dit product?

Download product sheet

Meer info over dit merk:

Article Number	CMCEF 16
Pollution Degree	3
Number Of Poles	32
Connection Type	Crimp connection
Contact Type	Female
Required Crimp Contacts	CCFA 0.3, CCFA 0.5, CCFA 0.7, CCFA 1.0, CCFA 1.5, CCFA 2.5, CCFA 3.0, CCFA 4.0, CCFD 0.3, CCFD 0.5, CCFD 0.7, CCFD 1.0, CCFD 1.5, CCFD 2.5, CCFD 3.0, CCFD 4.0, CCFC 0.3, CCFC 0.5, CCFF 0.3, CCFF 0.5, CCF2D 0.3, CCF2D 0.5, CCF2D 0.7, CCF2D 1.0, CCF2D 1.5, CCF2D 2.5, CCF2D 3.0, CCF2D 4.0, CCFJD 0.3, CCFJD 0.5, CCFJD 0.7, CCFJD 1.0, CCFJD 1.5, CCFJD 2.5, CCFJD 3.0, CCFJD 4.0
Extra Information	Contact insert without contacts
Ambient Lower Temperature	-40 °C
Ambient Upper Temperature	125 °C
Required Housing	C-type size 104.62 W-type 104.62
Diameter Male Contact	2.5 mm
Inflammability Class Of Insulation Material Acc. With Ul94	V0
Material Insert	Thermoplastic
Max. Rated Current	16 A
Nominal Rated Voltage	690 V
Over Voltage Category	III
Rated Surge Voltage	6 kV

Eigenschappen verschillen tussen varianten en subvarianten

Accessoires

Screws for second earth terminal

Single code pins for 6 codings

Single code pins for 6 codings

Male double coding and guide pins, for 16 codes

Male double coding and guide pins, for 16 codes

Female double coding and guide pins, for 16 codes

Female double coding and guide pins, for 16 codes

Male coding and guide pin, for 72 codes

Male coding and guide pin, for 72 codes

Female coding and guide pin, for 72 codes

Female coding and guide pin, for 72 codes

Single coding and guide pin, for 72 codes

Single coding and guide pin, for 72 codes

Article Number	CMCEF 16 N
Pollution Degree	3
Number Of Poles	32
Connection Type	Crimp connection
Contact Type	Female
Required Crimp Contacts	CCFA 0.3, CCFA 0.5, CCFA 0.7, CCFA 1.0, CCFA 1.5, CCFA 2.5, CCFA 3.0, CCFA 4.0, CCFD 0.3, CCFD 0.5, CCFD 0.7, CCFD 1.0, CCFD 1.5, CCFD 2.5, CCFD 3.0, CCFD 4.0, CCFC 0.3, CCFC 0.5, CCFF 0.3, CCFF 0.5, CCF2D 0.3, CCF2D 0.5, CCF2D 0.7, CCF2D 1.0, CCF2D 1.5, CCF2D 2.5, CCF2D 3.0, CCF2D 4.0, CCFJD 0.3, CCFJD 0.5, CCFJD 0.7, CCFJD 1.0, CCFJD 1.5, CCFJD 2.5, CCFJD 3.0, CCFJD 4.0
Extra Information	Contact insert without contacts
Ambient Lower Temperature	-40 °C
Ambient Upper Temperature	125 °C
Required Housing	C-type size 104.62 W-type 104.62
Diameter Male Contact	2.5 mm
Inflammability Class Of Insulation Material Acc. With Ul94	V0
Material Insert	Thermoplastic
Max. Rated Current	16 A
Nominal Rated Voltage	690 V
Over Voltage Category	III
Rated Surge Voltage	6 kV
