JST
Number Of Poles
- 1
| Article Number | CNB-01AH |
| Number Of Contacts | 1 |
| Upper Temperature | +105 °C |
| Lower Temperature | -30 °C |
| General Description | Crimp Style Coaxial (Wire to Board) |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | Coaxial mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
Eigenschappen verschillen tussen varianten en subvarianten

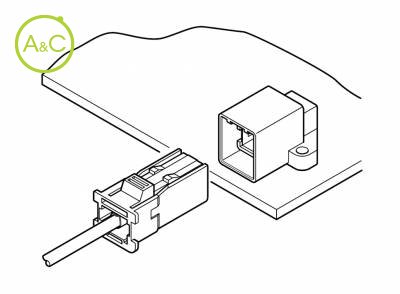

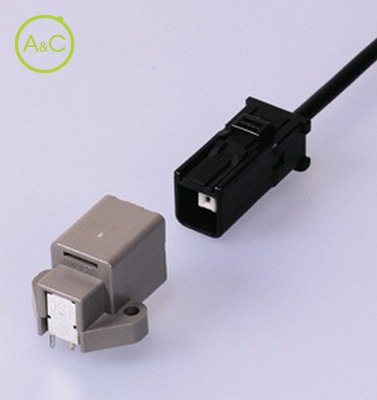

Connector for the GPS antenna system of the car navigation system.
The CN connector applies the unique crimping method to the shielding meshed wires, which will result in superior high-frequency characteristics.
Shielding meshed wires are crimped with the N-type crimp shape, which prevents the deflection and coming off of the meshed wires. Cost effective.
Cost effective
Less expensive than the conventional high-frequency connectors.
Crimping method and shape
Shielding meshed wires are crimped with the N-type crimp shape, which prevents the deflection and coming off of the meshed wires.
Superb high-frequency characteristics
This connector can keep low VSWR characteristics, while serving high-frequency characteristics.
RoHS Compliant
