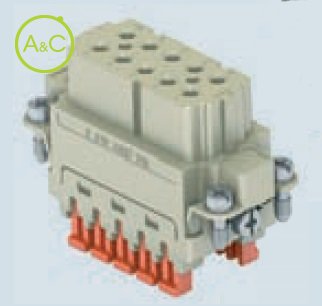

Inserts, 10P + PE, Spring terminal connections, With actuator button
Meer info over dit merk:
Ilme
Ilme
- General
| Article Number | CSAHF 10 |
| Pollution Degree | 3 |
| Number Of Poles | 10 |
| Connection Type | Screw connection |
| Contact Type | Female |
| Colour | White |
| Ambient Lower Temperature | -40 °C |
| Ambient Upper Temperature | 125 °C |
| Min. Cross Section With End Sleeve | 0.14 mm² |
| Max. Cross Section With End Sleeve | 1.5 mm² |
| Min. Cross Section Without End Sleeve | 0.14 mm² |
| Max. Cross Section Without End Sleeve | 2.5 mm² |
| Required Housing |
IL-BRID size 49.16 W-type size 49.16 EMC size 49.16 COB size 49.16 |
| Diameter Male Contact | 2.5 mm |
| Inflammability Class Of Insulation Material Acc. With Ul94 | V0 |
| Material Insert | Thermoplastic |
| Max. Rated Current | 16 A |
| Nominal Rated Voltage | 250 V |
| Over Voltage Category | III |
| Rated Surge Voltage | 4 kV |
Eigenschappen verschillen tussen varianten en subvarianten
