Download product sheet

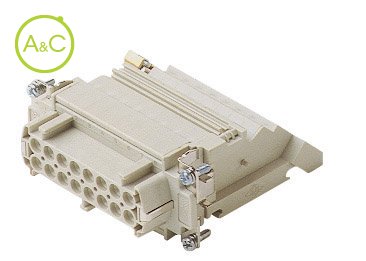

Terminal block inserts, 32P + PE, Spring terminal connection
Meer info over dit merk:
Ilme
Side-mounting
- Left
- Right
Article Number | CTSEF 16 LN* | CTSEF 16 L* |
Pollution Degree | 3 | 3 |
Number Of Poles | 32 | 32 |
Connection Type | Spring clamp connection | Spring clamp connection |
Contact Type | Female | Female |
Remark | Only for bulkhead mounted housings and BIG hoods | Only for bulkhead mounted housings and BIG hoods |
Extra Information |
Modular version With protective conductor With wire protection |
Modular version With protective conductor With wire protection |
Ambient Lower Temperature | -40 °C | -40 °C |
Ambient Upper Temperature | 125 °C | 125 °C |
Pin Numbers | 1-16 | 1-16 |
Min. Cross Section Without End Sleeve | 0.75 mm² | 0.75 mm² |
Max. Cross Section Without End Sleeve | 2.5 mm² | 2.5 mm² |
Required Housing |
C-type size 77.62 W-type size 77.62 |
C-type size 77.62 W-type size 77.62 |
Diameter Male Contact | 2.5 mm | 2.5 mm |
Inflammability Class Of Insulation Material Acc. With Ul94 | V0 | V0 |
Material Insert | Thermoplastic | Thermoplastic |
Material Contact | Brass | Brass |
Plating Of Contact | Silver | Silver |
Max. Rated Current | 16 A | 16 A |
Nominal Rated Voltage | 500 V | 500 V |
Over Voltage Category | III | III |
Rated Surge Voltage | 6 kV | 6 kV |
Eigenschappen verschillen tussen varianten en subvarianten
