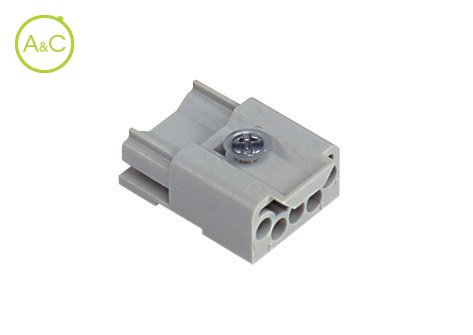

Inserts 2 pole fibre optics + 4 poles, crimp connections
Meer info over dit merk:
Ilme
Ilme
- General
| Article Number | CXL SF |
| Pollution Degree | 3 |
| Number Of Poles | 4 |
| Contact Type | Female |
| Required Crimp Contacts | CDFA 0.3, CDFA 0.5, CDFA 0.7, CDFA 1.0, CDFA 1.5, CDFA 2.5, CDFD 0.3, CDFD 0.5, CDFD 0.7, CDFD 1.0, CDFD 1.5, CDFD 2.5 |
| Extra Information |
Contact insert without contacts With protective conductor |
| Ambient Lower Temperature | -40 °C |
| Ambient Upper Temperature | 70 °C |
| Diameter Male Contact | 1.6 mm |
| Inflammability Class Of Insulation Material Acc. With Ul94 | V0 |
| Material Insert | Thermoplastic |
| Max. Rated Current | 10 A |
| Nominal Rated Voltage | 25 V |
| Over Voltage Category | II |
| Rated Surge Voltage | 0.8 kV |
Eigenschappen verschillen tussen varianten en subvarianten
