JST
Cable Diameter
- 8.0
- 9.0
| Article Number | J37-06FMH-8KL-1L-CF | J37-06FMH-8KL-1M-CF | J37-06FMH-8KL-1S-CF |
| Number Of Contacts | 6 | 6 | 6 |
| Upper Temperature | +105 °C | +105 °C | +105 °C |
| Lower Temperature | -55 °C | -55 °C | -55 °C |
| General Description | 3.8mm Pitch Connector Kit for Motor | 3.8mm Pitch Connector Kit for Motor | 3.8mm Pitch Connector Kit for Motor |
| Connection Type | Factory Automation Connectors | Factory Automation Connectors | Factory Automation Connectors |
| Pitch / Style | 3.8 mm | 3.8 mm | 3.8 mm |
| Rated Current (ac/dc) | 10 A | 10 A | 10 A |
| Rated Voltage (ac/dc) | 250 V | 250 V | 250 V |
| Remark | Waterproof | Waterproof | Waterproof |
| Extra Information | Nominal: L | Nominal: M | Nominal: S |
Eigenschappen verschillen tussen varianten en subvarianten

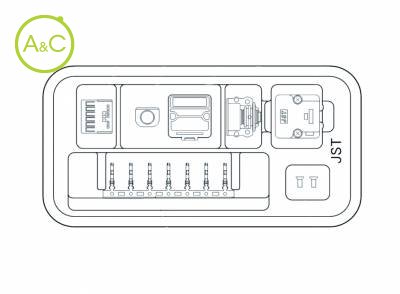

6 Circuit connector for power supply of servomotor.
This connector is supplied in kits, including all components.
Waterproof grade: Grade 5 ingress protection of JIS C 0920 (IEC 60529 IPX5)
Standards
UL Recognized E60389
RoHS Compliant
