JST
Applicable Wire
- AWG 22 to 18
- AWG 28 to 24
| Article Number | SF1F-002GC-P0.6 | SF1F-002T-P0.6 |
| Upper Temperature | +105 °C | +105 °C |
| Lower Temperature | -55 °C | -55 °C |
| General Description | 2.2mm Pitch Disconnectable Crimp Style (Wire to Board) | 2.2mm Pitch Disconnectable Crimp Style (Wire to Board) |
| Applicable Wire Size | 0.08 to 0.22 (AWG #28 to #24) mm² | 0.08 to 0.22 (AWG #28 to #24) mm² |
| Connection Type | Factory Automation Connectors | Factory Automation Connectors |
| Pitch / Style | 2.20 mm | 2.20 mm |
| Rated Voltage (ac/dc) | 125 V | 125 V |
| Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) |
| Remark | Gold plated | Tin plated |
Eigenschappen verschillen tussen varianten en subvarianten

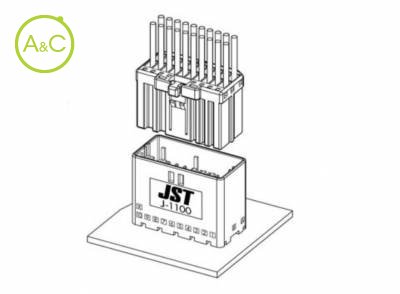

It is a high reliability connector corresponding to demand of the miniaturization of electronic equipment and the wire size of AWG#18.
Double-spring construction
Double-spring construction realizes stable contact performance.
Housing lance
Housing lance assures inserting the terminal into the housing.
Retention force of terminal is also stabilized.
Clear 'click feeling'
Clear feeling of click by inner lock structure and long stroke when mating connector can be realized secure engagement and the performance is stabilized.
RoHS Compliant
