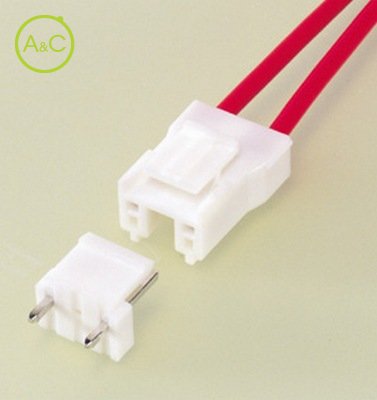

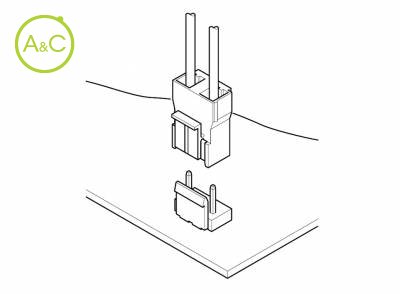

7.92mm (.312") pitch crimp style, large current carrying capacity connector, that is best suited for various kinds of power supply circuits. Box-shaped contacts offer reliable connection. Housing lances The lances on the housing ensure easy insertion and secure locking of the contact into the housing. Box contact This connector has the box-shaped contact. The reliable NVA connector can be used in a wide variety of applications, from low-voltage, low-current signal currents to power supply circuits having a relatively large capacity. Secure contact and mounting The housing has an arm lock mechanism which prevents the connector from working loose due to vibration. The mechanism also prevents misinsertion (misalignment or reverse insertion). Applicable up to 10A The NVA connector is a large current carrying capacity, crimp style, printed circuit board connector with 7.92mm (.312") pitch. Can be connected to vinyl insulated flat cables (such as SPT, HVFF) ranging from 20 to 16 AWG which are used for primary sides of power circuits. Standards UL Recognized E60389 CSA Certified LR20812 TUV R9251675 RoHS Compliant
