Header THT Tin plated Side entry

RA CONNECTOR

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

JST

Number Of Poles

Article Number	RA-H101SD-1190
Number Of Contacts	10
Upper Temperature	+85 °C
Lower Temperature	-55 °C
General Description	2.54mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.54 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	300 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	RA-H161SD-1190
Number Of Contacts	16
Upper Temperature	+85 °C
Lower Temperature	-55 °C
General Description	2.54mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.54 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	300 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	RA-H201SD-1190	RX-H201SD-1190
Number Of Contacts	20	20
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-55 °C	-55 °C
General Description	2.54mm Pitch Disconnectable Crimp Style	2.54mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	2.54 mm	2.54 mm
Rated Current (ac/dc)	1.0 A	1.0 A
Rated Voltage (ac/dc)	300 V	300 V
Pcb Mount Style	Through-hole Technology (THT)	Through-hole Technology (THT)

Article Number	RA-H261SD-1190
Number Of Contacts	26
Upper Temperature	+85 °C
Lower Temperature	-55 °C
General Description	2.54mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.54 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	300 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	RA-H341SD-1190	RK-H341SD-0190	RX-H341SD-1190
Number Of Contacts	34	34	34
Upper Temperature	+85 °C	+85 °C	+85 °C
Lower Temperature	-55 °C	-55 °C	-55 °C
General Description	2.54mm Pitch Disconnectable Crimp Style	2.54mm Pitch Disconnectable Crimp Style	2.54mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	2.54 mm	2.54 mm	2.54 mm
Rated Current (ac/dc)	1.0 A	1.0 A	1.0 A
Rated Voltage (ac/dc)	300 V	300 V	300 V
Pcb Mount Style	Through-hole Technology (THT)	Through-hole Technology (THT)	Through-hole Technology (THT)

Article Number	RA-H401SD-1190	RK-H401SD-0190	RX-H401SD-1190
Number Of Contacts	40	40	40
Upper Temperature	+85 °C	+85 °C	+85 °C
Lower Temperature	-55 °C	-55 °C	-55 °C
General Description	2.54mm Pitch Disconnectable Crimp Style	2.54mm Pitch Disconnectable Crimp Style	2.54mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	2.54 mm	2.54 mm	2.54 mm
Rated Current (ac/dc)	1.0 A	1.0 A	1.0 A
Rated Voltage (ac/dc)	300 V	300 V	300 V
Pcb Mount Style	Through-hole Technology (THT)	Through-hole Technology (THT)	Through-hole Technology (THT)

Article Number	RA-H501SD-1190	RX-H501SD-1190
Number Of Contacts	50	50
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-55 °C	-55 °C
General Description	2.54mm Pitch Disconnectable Crimp Style	2.54mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	2.54 mm	2.54 mm
Rated Current (ac/dc)	1.0 A	1.0 A
Rated Voltage (ac/dc)	300 V	300 V
Pcb Mount Style	Through-hole Technology (THT)	Through-hole Technology (THT)

Article Number	RA-H601SD-1190	RX-H601SD-1190
Number Of Contacts	60	60
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-55 °C	-55 °C
General Description	2.54mm Pitch Disconnectable Crimp Style	2.54mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	2.54 mm	2.54 mm
Rated Current (ac/dc)	1.0 A	1.0 A
Rated Voltage (ac/dc)	300 V	300 V
Pcb Mount Style	Through-hole Technology (THT)	Through-hole Technology (THT)

Eigenschappen verschillen tussen varianten en subvarianten

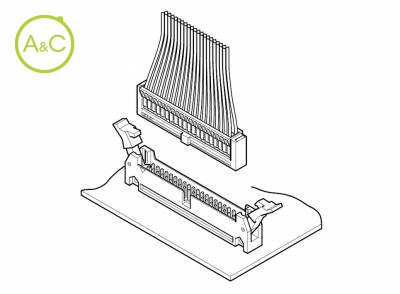

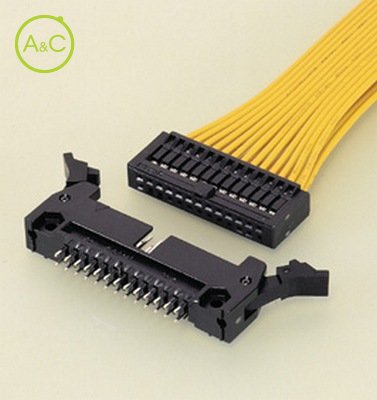

Crimp style receptacles that are designed to mate with headers conforming to MIL-C-83503. The locking levers are engaged by inserting the receptacle into the header. The guide devices of both housing and header prevent reverse connector insertion. Secure locking mechanism (RA, RX headers) The locking levers are engaged by inserting the receptacle into the header. This ensures a firm connection that is highly resistant to impact and vibration. Housing lances The contact retention lances on the resilient housing allow visual confirmation of contact lock-in for easy and secure insertion. Low insertion force contact The low insertion force contacts reduce surface finish wear and reduce the effects of stress relaxation. Anti-misinsertion feature The guide devices of both housing and header prevent reverse connector insertion. Standards UL Recognized E60389 RoHS Compliant
