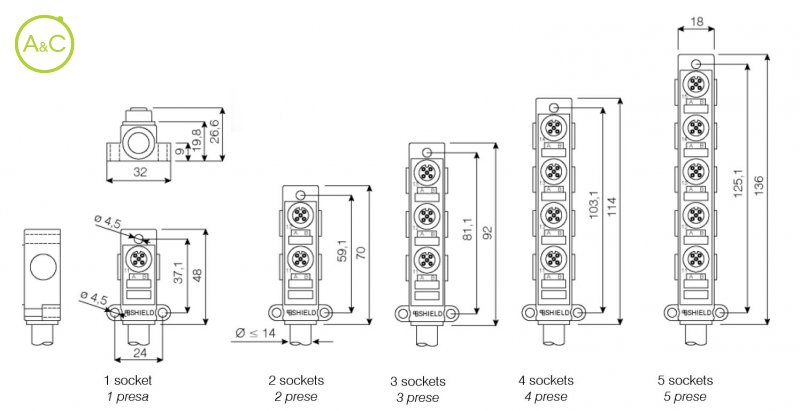

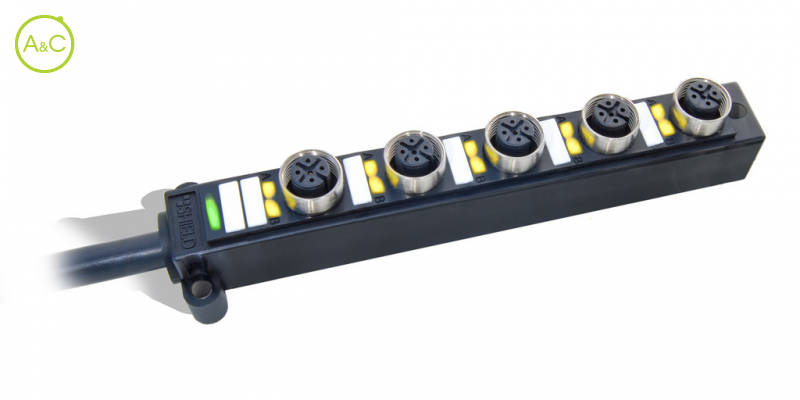

from 1 to 5 sockets, 2 signals each socket

Heeft u nog vragen over dit product?

Download product sheet

Meer info over dit merk:

Article Number	SD102N7 00230 52U 5000
Number Of Contacts	5
Protection Degree	IP65*
Upper Temperature	+80 °C
Lower Temperature	-25 °C
Housing Material	TPU
Circuits	Without LED
Housing Oil Resistance	Very good
Contact Material	Nickel & golden plated CuZn
Locking Nut Material	Brass nickel plated
Voltage With Pollution Degree 2 Vdc **	1 to 135 Max. power 200 W
Voltage With Pollution Degree 3 Vdc **	1 to 60 Max. power 200 W
Voltage With Pollution Degree 2 Vac **	1 to 135 Max. power 200 W
Voltage With Pollution Degree 3 Vac **	1 to 60 Max. power 200 W
Max. Currrent	8 A for common wires, 4 A each socket, 2 A each signal A @40°C
Control Type	Cable
Coding	A
Connected Terminals	1= V+, 2= B signal, 3= V-, 4= A signal, 5= ground
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark *	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution

Article Number	SD103N7 00230 837 5000
Number Of Contacts	5
Protection Degree	IP65*
Upper Temperature	+80 °C
Lower Temperature	-25 °C
Housing Material	TPU
Circuits	Without LED
Housing Oil Resistance	Very good
Contact Material	Nickel & golden plated CuZn
Locking Nut Material	Brass nickel plated
Voltage With Pollution Degree 2 Vdc **	1 to 135 Max. power 200 W
Voltage With Pollution Degree 3 Vdc **	1 to 60 Max. power 200 W
Voltage With Pollution Degree 2 Vac **	1 to 135 Max. power 200 W
Voltage With Pollution Degree 3 Vac **	1 to 60 Max. power 200 W
Max. Currrent	8 A for common wires, 4 A each socket, 2 A each signal A @40°C
Control Type	Cable
Coding	A
Connected Terminals	1= V+, 2= B signal, 3= V-, 4= A signal, 5= ground
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark *	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution

Article Number	SD104N7 00230 843 5000
Number Of Contacts	5
Protection Degree	IP65*
Upper Temperature	+80 °C
Lower Temperature	-25 °C
Housing Material	TPU
Circuits	Without LED
Housing Oil Resistance	Very good
Contact Material	Nickel & golden plated CuZn
Locking Nut Material	Brass nickel plated
Voltage With Pollution Degree 2 Vdc **	1 to 135 Max. power 200 W
Voltage With Pollution Degree 3 Vdc **	1 to 60 Max. power 200 W
Voltage With Pollution Degree 2 Vac **	1 to 135 Max. power 200 W
Voltage With Pollution Degree 3 Vac **	1 to 60 Max. power 200 W
Max. Currrent	8 A for common wires, 4 A each socket, 2 A each signal A @40°C
Control Type	Cable
Coding	A
Connected Terminals	1= V+, 2= B signal, 3= V-, 4= A signal, 5= ground
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark *	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution

Article Number	SD105N7 00230 872 5000
Number Of Contacts	5
Protection Degree	IP65*
Upper Temperature	+80 °C
Lower Temperature	-25 °C
Housing Material	TPU
Circuits	Without LED
Housing Oil Resistance	Very good
Contact Material	Nickel & golden plated CuZn
Locking Nut Material	Brass nickel plated
Voltage With Pollution Degree 2 Vdc **	1 to 135 Max. power 200 W
Voltage With Pollution Degree 3 Vdc **	1 to 60 Max. power 200 W
Voltage With Pollution Degree 2 Vac **	1 to 135 Max. power 200 W
Voltage With Pollution Degree 3 Vac **	1 to 60 Max. power 200 W
Max. Currrent	8 A for common wires, 4 A each socket, 2 A each signal A @40°C
Control Type	Cable
Coding	A
Connected Terminals	1= V+, 2= B signal, 3= V-, 4= A signal, 5= ground
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark *	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution

Eigenschappen verschillen tussen varianten en subvarianten
