JST
Applicable Wire
- AWG 30 to 28
| Article Number | SGVH-002T-P0.2 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.0mm Pitch Disconnectable Crimp Style |
| Applicable Wire Size | 0.05 to 0.08 (AWG #30 to #28) mm² |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm |
| Rated Current (ac/dc) | 1.0 (WG #28) A |
| Rated Voltage (ac/dc) | 300 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Eigenschappen verschillen tussen varianten en subvarianten

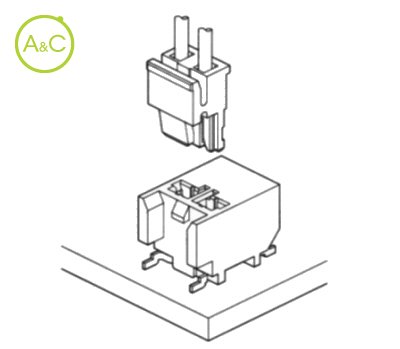

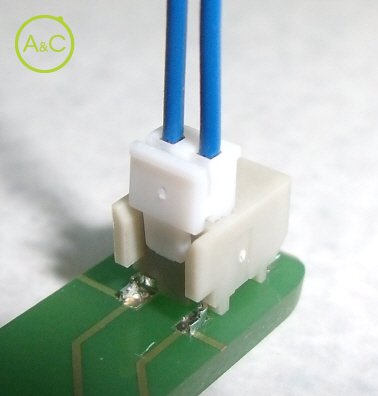

SFV Connector is a wire to board connector for connecting power supply to PCB and withstands high voltage. It is used for power supply of LED backlight in Liquid Crystal Display (LCD) Television sets.
Withstands high voltage
Secure lock
Halogen free
EC Directive 2002/95/EC (the RoHS Directive) - Compliant
