JST
Applicable Wire
- AWG 30 to 26
| Article Number | SGHD-002GA-P0.2 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.25mm Pitch Disconnectable Crimp Style |
| Applicable Wire Size | 0.05 to 0.13 (AWG #30 to #26) mm² |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.25 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Eigenschappen verschillen tussen varianten en subvarianten

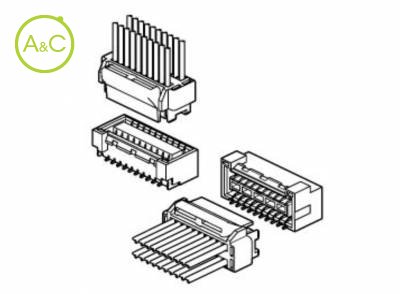

To meet the requirement of the high density mounting PC board of flat panel TV, AV equipments etc., this connector is designed to the double-row type of 1.25mm pitch.
It's operability is very well, in spite of the small size.
Secure locking structure
Low insertion force
Prevention of contact deformation
Suction area for picking up
RoHS Compliant
