Ilme
- General

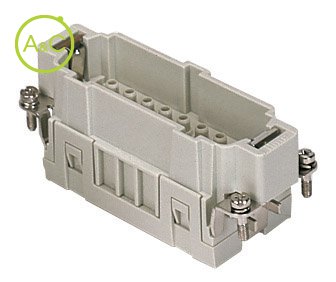

| Article Number | CCEM 16 |
| Pollution Degree | 3 |
| Number Of Poles | 32 |
| Connection Type | Crimp connection |
| Contact Type | Male |
| Required Crimp Contacts | CCMA 0.3, CCMA 0.5, CCMA 0.7, CCMA 1.0, CCMA 1.5, CCMA 2.5, CCMA 3.0, CCMA 4.0, CCMD 0.3, CCMD 0.5, CCMD 0.7, CCMD 1.0, CCMD 1.5, CCMD 2.5, CCMD 3.0, CCMD 4.0, CC 0.5 AN, CC 0.7 AN, CC 1.0 AN, CC 1.5 AN, CC 2.5 AN, CCMC 0.3, CCMC 0.5, CCMF 0.3, CCMF 0.5, CCM2D 0.3, CCM2D 0.5, CCM2D 0.7, CCM2D 1.0, CCM2D 1.5, CCM2D 2.5, CCM2D 3.0, CCM2D 4.0, CCMJD 0.3, CCMJD 0.5, CCMJD 0.7, CCMJD 1.0, CCMJD 1.5, CCMJD 2.5, CCMJD 3.0, CCMJD 4.0 |
| Extra Information | Contact insert without contacts |
| Ambient Lower Temperature | -40 °C |
| Ambient Upper Temperature | 125 °C |
| Pin Numbers | 1-16 |
| Required Housing |
C-type size 77.62 W-type size 77.62 |
| Diameter Male Contact | 2.5 mm |
| Inflammability Class Of Insulation Material Acc. With Ul94 | V0 |
| Material Insert | Thermoplastic |
| Max. Rated Current | 16 A |
| Nominal Rated Voltage | 500 V |
| Over Voltage Category | III |
| Rated Surge Voltage | 6 kV |
Eigenschappen verschillen tussen varianten en subvarianten
