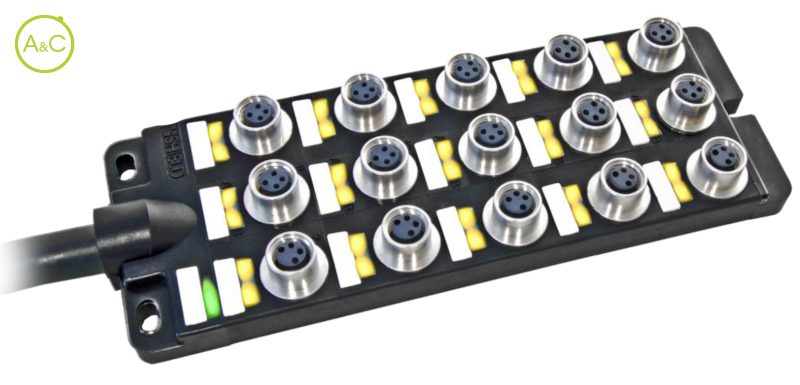

High density, from 6 to 15 sockets, 2 signals each socket

With LED

SK34 - SK342N7 06400

SK34 - SK342N7 06400

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

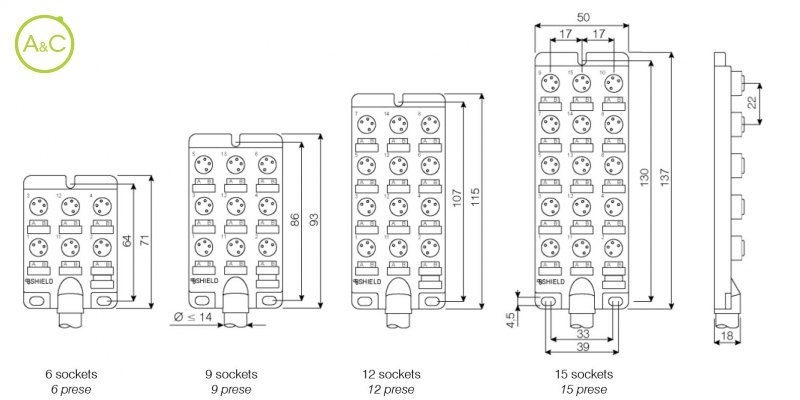

Socket Quantity

6
9
12
15

Article Number	SK342N7 06400 328 5000
Number Of Contacts	4
Protection Degree	IP65*
Upper Temperature	+70 °C
Lower Temperature	-25 °C
Housing Material	TPU
Circuits	With LED
Housing Oil Resistance	Very good
Contact Material	Nickel & golden plated CuZn
Locking Nut Material	Brass nickel plated
Voltage With Pollution Degree 3 Vdc **	10 to 30
Max. Currrent	6 A for common wires, 3 A each socket A @40°C
Control Type	Cable
Coding	A
Connected Terminals	1= V+, 2= B signal, 3= V-, 4= A signal
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark *	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution

Article Number	SK343N7 06400 319 5000
Number Of Contacts	4
Protection Degree	IP65*
Upper Temperature	+70 °C
Lower Temperature	-25 °C
Housing Material	TPU
Circuits	With LED
Housing Oil Resistance	Very good
Contact Material	Nickel & golden plated CuZn
Locking Nut Material	Brass nickel plated
Voltage With Pollution Degree 3 Vdc **	10 to 30
Max. Currrent	6 A for common wires, 3 A each socket A @40°C
Control Type	Cable
Coding	A
Connected Terminals	1= V+, 2= B signal, 3= V-, 4= A signal
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark *	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution

Article Number	SK344N7 06400 230 5000
Number Of Contacts	4
Protection Degree	IP65*
Upper Temperature	+70 °C
Lower Temperature	-25 °C
Housing Material	TPU
Circuits	With LED
Housing Oil Resistance	Very good
Contact Material	Nickel & golden plated CuZn
Locking Nut Material	Brass nickel plated
Voltage With Pollution Degree 3 Vdc **	10 to 30
Max. Currrent	6 A for common wires, 3 A each socket A @40°C
Control Type	Cable
Coding	A
Connected Terminals	1= V+, 2= B signal, 3= V-, 4= A signal
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark *	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution

Article Number	SK345N7 06400 211 5000
Number Of Contacts	4
Protection Degree	IP65*
Upper Temperature	+70 °C
Lower Temperature	-25 °C
Housing Material	TPU
Circuits	With LED
Housing Oil Resistance	Very good
Contact Material	Nickel & golden plated CuZn
Locking Nut Material	Brass nickel plated
Voltage With Pollution Degree 3 Vdc **	10 to 30
Max. Currrent	6 A for common wires, 3 A each socket A @40°C
Control Type	Cable
Coding	A
Connected Terminals	1= V+, 2= B signal, 3= V-, 4= A signal
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark *	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution

Eigenschappen verschillen tussen varianten en subvarianten
