JST
Applicable Wire
- AWG 32 to 28
| Article Number | SSH-003T-P0.2-H |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.0mm Pitch Disconnectable Crimp Style |
| Applicable Wire Size | 0.032 to 0.08 (AWG #32 to #28) mm² |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Eigenschappen verschillen tussen varianten en subvarianten

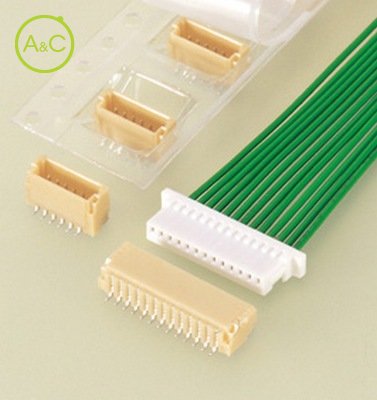

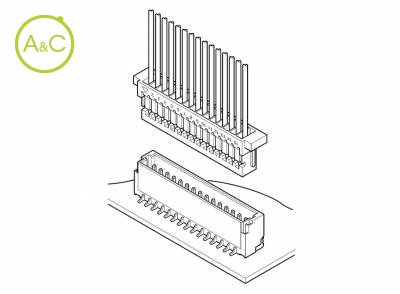

The world's first 1.0mm (.039") pitch crimp style connector.
Ultra-compact, low profile design
The SH connector is very small with a mounting height of 2.95mm (.116") for side entry type.
Compatible with the SR insulation displacement connectors
The same shrouded header can be used for the SR insulation displacement connector.
Housing lances
The contact retention lances on the resilient housing allow the confirmation of contact lock-in for easy and secure insertion.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
