JST
Applicable Wire
- AWG 24 to 20
| Article Number | SVF-01T-1.5N |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |

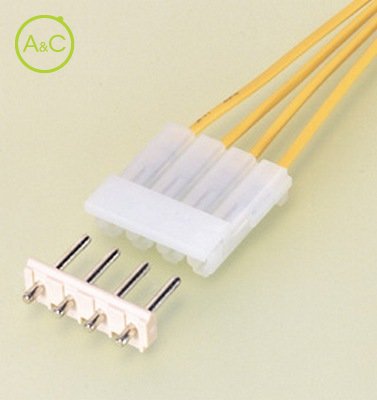

| General Description | 5mm Pitch Disconnectable Crimp Style |
| Applicable Wire Size | 0.2 to 0.5 ( AWG #24 to #20) mm² |

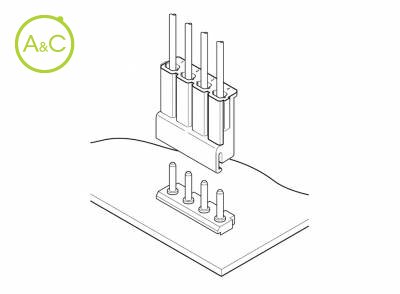

| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 5.00 mm |
| Rated Current (ac/dc) | 5 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
Eigenschappen verschillen tussen varianten en subvarianten
The directional features of the housing prevent reverse contact insertion.
The housings with two or four circuits have locking mechanisms. This feature provides polarization and prevents misinsertion.
Anti-misinsertion feature
The directional features of the housing prevent reverse contact insertion.
Locking mechanism
The housings with two or four circuits have locking mechanisms. This feature also provides polarization so that the housing cannot be mismated with the header.
Standards
UL Recognized E60389
CSA Certified LR20812
TUV Certified R75171
RoHS Compliant
