XNI CONNECTOR

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

JST

Applicable Wire

AWG 26 to 22
AWG 30 to 28

Article Number	SXNI-001T-P0.6
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style
Applicable Wire Size	0.13 to 0.33 (AWG #26 to #22) mm²
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	SXNI-003T-P0.6
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style
Applicable Wire Size	0.05 to 0.08 (AWG #30 to #28) mm²
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Eigenschappen verschillen tussen varianten en subvarianten

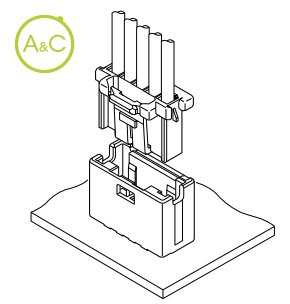

This is a 2.5mm pitch wire-to-board connector that has a mechanism to prevent incomplete mating by utilizing the inertial force when mating the connector. In all circuits of connector, controlled key for preventing mismatching of mating is added, and two type connectors can be used in the same model. Inertial lock structure Finger-friendly design Secure locking structure Standards UL Recognized E60389 RoHS Compliant
