Waterproof,Junction boxes empty and with terminal blocks

SNAP-IN
TH026 Terminal block

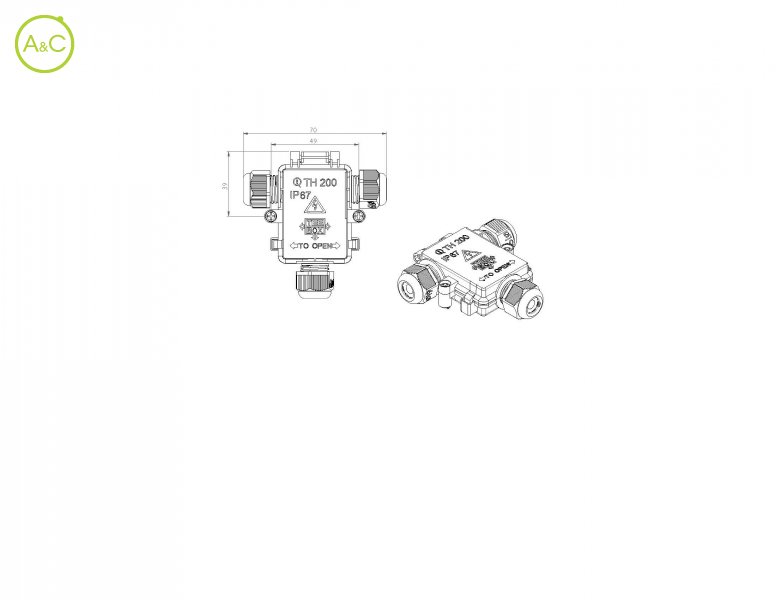

THA.200.F2E

THA.200.F2E

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

Protection Degree

IP54
IP67

Article Number	THA.200.C1F
Upper Temperature	+125 °C
Lower Temperature	-40 °C
Remark	Only for IP67 version
Inner Dimensions	47 mm x 33 mm x 16 mm
Min-max Cable Diameter	4,0 - 9,5 mm
Terminal Block	TH026
Cable Entries/exits	3 ways
T Marking	T85 16 A °C
Body	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Lock Nuts	PA66 FV UL94 GWT 850°C black - grey RAL 7035
Grommets	TPE
Co-moulded Seal Of Lid	SEBS
Fixing Screws Of Lid	∅ 3,9 x 13,0 mm self-screwing steel zinc plated*
Standards	EN60529:1991+A1:2000 EN60998-1:2004
Note	Useful with TH026 terminal block and standard terminal blocks.

Article Number	THA.200.F2E
Upper Temperature	+125 °C
Lower Temperature	-40 °C
Remark	Only for IP67 version
Inner Dimensions	47 mm x 33 mm x 16 mm
Min-max Cable Diameter	7,5 - 9,5 mm
Terminal Block	TH026
Cable Entries/exits	3 ways
T Marking	T85 16 A °C
Body	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Lock Nuts	PA66 FV UL94 GWT 850°C black - grey RAL 7035
Grommets	TPE
Co-moulded Seal Of Lid	SEBS
Fixing Screws Of Lid	∅ 3,9 x 13,0 mm self-screwing steel zinc plated*
Standards	EN60529:1991+A1:2000 EN60998-1:2004
Note	Useful with TH026 terminal block and standard terminal blocks.

Eigenschappen verschillen tussen varianten en subvarianten
