Junction boxes empty and with terminal blocks

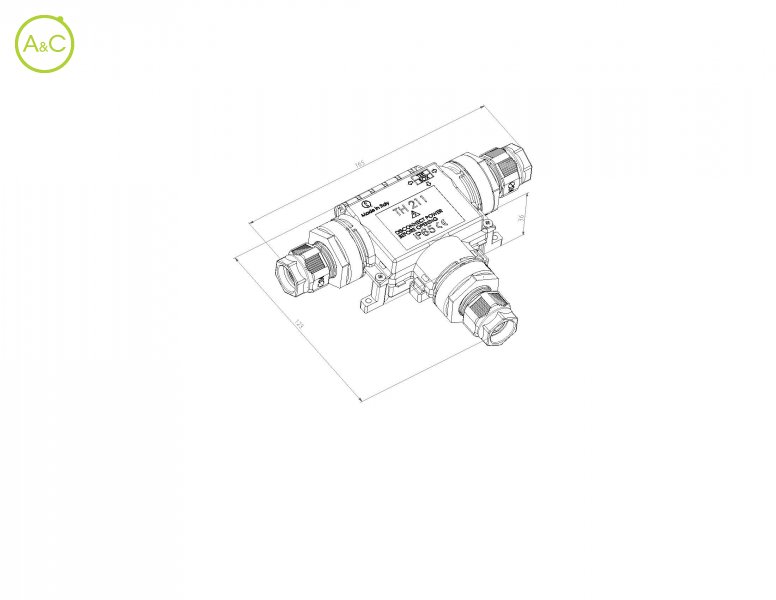

THA.211.A1A

THA.211.A1A

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

Protection Degree

IP54
IP65

Article Number	THA.211.A1B	THA.211.B1B	THA.211.C1B	THA.211.D1B
Upper Temperature	+125 °C	+125 °C	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C	-40 °C	-40 °C
Inner Dimensions	58 mm x 45 mm x 27 mm	58 mm x 45 mm x 27 mm	58 mm x 45 mm x 27 mm	58 mm x 45 mm x 27 mm
Cable Diameter Min-max A	8,0 - 17,0 mm	8,0 - 17,0 mm	7,0 - 13,5 mm	7,0 - 13,5 mm
Cable Diameter Min-max B	8,0 - 17,0 mm	8,0 - 17,0 mm	7,0 - 13,5 mm	7,0 - 13,5 mm
Cable Diameter Min-max C	8,0 - 17,0 mm	7,0 - 13,5 mm	8,0 - 17,0 mm	7,0 - 13,5 mm
Terminal Block	TH026 / TH029 / TH032 / TH027	TH026 / TH029 / TH032 / TH027	TH026 / TH029 / TH032 / TH027	TH026 / TH029 / TH032 / TH027
Cable Entries/exits	3 ways	3 ways	3 ways	3 ways
Body	PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA66 UL94 V2 GWT 850°C black - grey RAL 7035
Cable Glands	PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA66 UL94 V2 GWT 850°C black - grey RAL 7035
Grommets	TPE	TPE	TPE	TPE
Co-moulded Seal Of Lid	SEBS	SEBS	SEBS	SEBS
Seals	Silicon	Silicon	Silicon	Silicon
Cover Fixing Screws	M3 x 12,0 mm inox stainless steel	M3 x 12,0 mm inox stainless steel	M3 x 12,0 mm inox stainless steel	M3 x 12,0 mm inox stainless steel
Standards	TEST REPORT EN60529:1991+A1:2000 IP65: 12.5 l/min 3 min	TEST REPORT EN60529:1991+A1:2000 IP65: 12.5 l/min 3 min	TEST REPORT EN60529:1991+A1:2000 IP65: 12.5 l/min 3 min	TEST REPORT EN60529:1991+A1:2000 IP65: 12.5 l/min 3 min
Note	∅ cable min-max 7.0 - 13.5 mm CH 24.0 mm ∅ cable min-max 8.0 - 17.0 mm CH 29.0 mm	∅ cable min-max 7.0 - 13.5 mm CH 24.0 mm ∅ cable min-max 8.0 - 17.0 mm CH 29.0 mm	∅ cable min-max 7.0 - 13.5 mm CH 24.0 mm ∅ cable min-max 8.0 - 17.0 mm CH 29.0 mm	∅ cable min-max 7.0 - 13.5 mm CH 24.0 mm ∅ cable min-max 8.0 - 17.0 mm CH 29.0 mm

Article Number	THA.211.A1A	THA.211.B1A	THA.211.C1A	THA.211.D1A
Upper Temperature	+125 °C	+125 °C	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C	-40 °C	-40 °C
Inner Dimensions	58 mm x 45 mm x 27 mm	58 mm x 45 mm x 27 mm	58 mm x 45 mm x 27 mm	58 mm x 45 mm x 27 mm
Cable Diameter Min-max A	8,0 - 17,0 mm	8,0 - 17,0 mm	7,0 - 13,5 mm	7,0 - 13,5 mm
Cable Diameter Min-max B	8,0 - 17,0 mm	8,0 - 17,0 mm	7,0 - 13,5 mm	7,0 - 13,5 mm
Cable Diameter Min-max C	8,0 - 17,0 mm	7,0 - 13,5 mm	8,0 - 17,0 mm	7,0 - 13,5 mm
Terminal Block	TH026 / TH029 / TH032 / TH027	TH026 / TH029 / TH032 / TH027	TH026 / TH029 / TH032 / TH027	TH026 / TH029 / TH032 / TH027
Cable Entries/exits	3 ways	3 ways	3 ways	3 ways
Body	PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA66 UL94 V2 GWT 850°C black - grey RAL 7035
Cable Glands	PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA66 UL94 V2 GWT 850°C black - grey RAL 7035
Grommets	TPE	TPE	TPE	TPE
Co-moulded Seal Of Lid	SEBS	SEBS	SEBS	SEBS
Seals	Silicon	Silicon	Silicon	Silicon
Cover Fixing Screws	M3 x 12,0 mm inox stainless steel	M3 x 12,0 mm inox stainless steel	M3 x 12,0 mm inox stainless steel	M3 x 12,0 mm inox stainless steel
Standards	TEST REPORT EN60529:1991+A1:2000 IP65: 12.5 l/min 3 min	TEST REPORT EN60529:1991+A1:2000 IP65: 12.5 l/min 3 min	TEST REPORT EN60529:1991+A1:2000 IP65: 12.5 l/min 3 min	TEST REPORT EN60529:1991+A1:2000 IP65: 12.5 l/min 3 min
Note	∅ cable min-max 7.0 - 13.5 mm CH 24.0 mm ∅ cable min-max 8.0 - 17.0 mm CH 29.0 mm	∅ cable min-max 7.0 - 13.5 mm CH 24.0 mm ∅ cable min-max 8.0 - 17.0 mm CH 29.0 mm	∅ cable min-max 7.0 - 13.5 mm CH 24.0 mm ∅ cable min-max 8.0 - 17.0 mm CH 29.0 mm	∅ cable min-max 7.0 - 13.5 mm CH 24.0 mm ∅ cable min-max 8.0 - 17.0 mm CH 29.0 mm

Eigenschappen verschillen tussen varianten en subvarianten

Accessoires

Terminal block mounting plate for TH211 series
