Techno
Number Of Poles
- 2
- 3
- 4
- 5

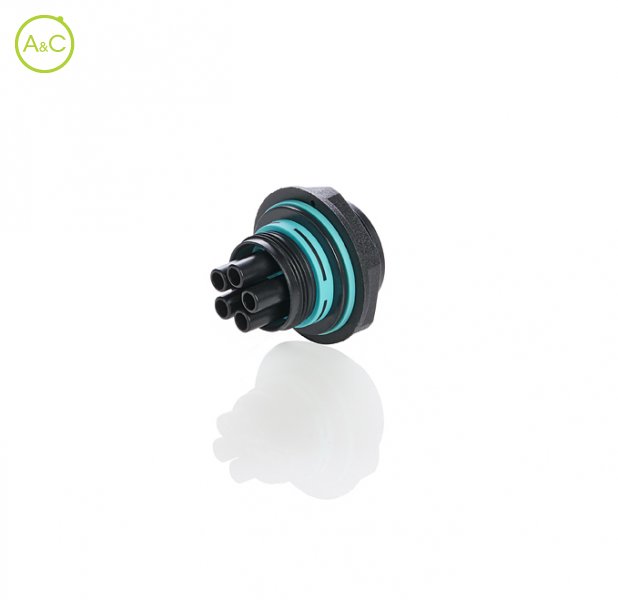

| Article Number | THB.387.F4A | THP.387.F4A |
| Number Of Contacts | 4 | 4 |
| Protection Degree | IP68 | IP68 |
| Upper Temperature | +125 °C | +125 °C |
| Lower Temperature | -40 °C | -40 °C |
| Rated Voltage | 450 | 450 |
| Pollution Degree | 2 | 2 |
| Rated Current | 17.5 A | 17.5 A |
| Contact Terminal | Contact screw terminals. For cable section < 1.0 mm² | Piercing clip terminals max 1,5 mm² |
| Terminals | Screw | Piercing |
| Cable Section | 0,5 - 2,5 mm² | 0,5 - 1,5 mm² |
| Min-max Cable Diameter | 7,0 - 12,0 mm | 7,0 - 12,0 mm |
| Protection Degree Details | 3 bar (30m / 3h) | 3 bar (30m / 3h) |
| Impulse Withstand Category | II | II |
| Impulse Withstand Voltage | 4 kV | 4 kV |
| Tracking Index | PTI 175 | PTI 175 |
| Cable Glands | PA66 UL94 V2 | PA66 UL94 V2 |
| Terminal Block Housing | PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035 | PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035 |
| Grommets | TPE green | TPE green |
| Co-moulded Seals | TPE green | TPE green |
| Contact Screw Terminals | Brass nickel plated | Brass nickel plated |
| Standard / Piercing Screws | M3 steel zinc plated | M3 steel zinc brass plated |
| Standards | EN61984:2009 | EN61984:2009 |
| Note | Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector. | Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector. |
Eigenschappen verschillen tussen varianten en subvarianten
