Higo
Number Of Poles
- 2

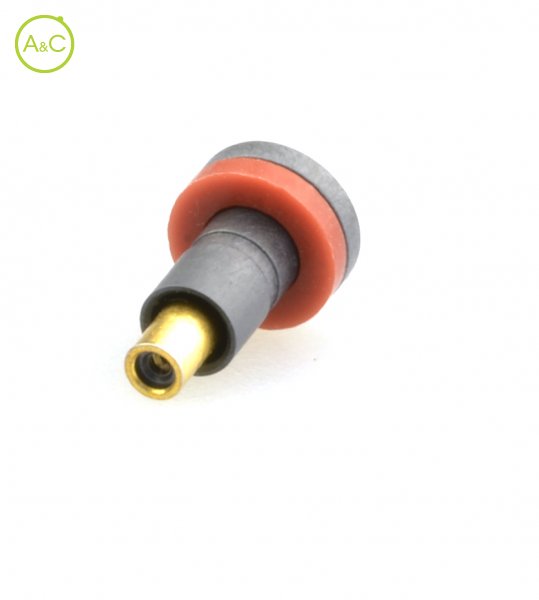

| Article Number | Z205AM R 04 00 0000 |
| Color | Black |
| Connector Diameter | 4.8 mm |
| Protection Degree | IP67 |
| Mating Cycles | 200 times |
| Upper Temperature | 80 °C |
| Lower Temperature | -25 °C |
| Rated Voltage | 48 V AC / 60 V DC |
| Max. Contact Resistance | ≤10 mΩ |
| Material Of Contact | Copper Alloy |
| Rated Current | 2 A |
| Max. Insulation Resistance | ≥20 MΩ |
| Contact Plating | Gold over Nickel |
Eigenschappen verschillen tussen varianten en subvarianten
