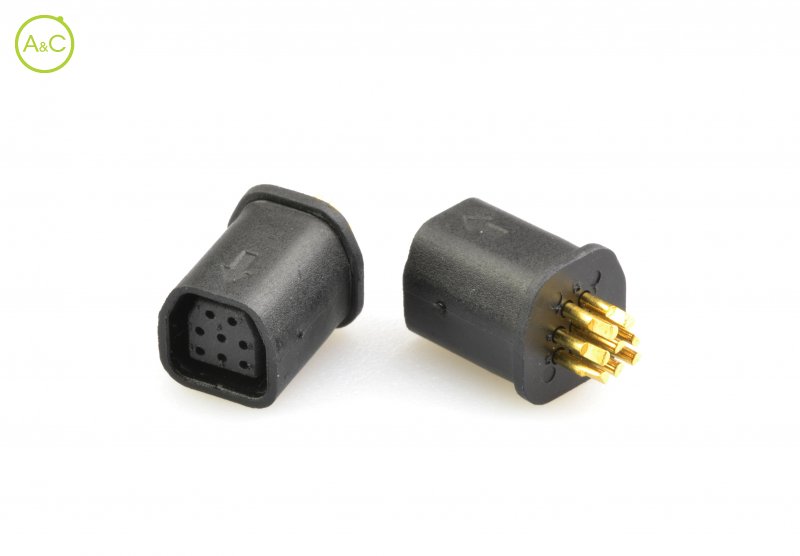

Mini F female panel mount connector

Straight PCB contacts

Z209FMC04000000

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Meer info over dit merk:

Number Of Poles

2
3
8

Article Number	Z209FM C 04 00 0000
Color	Red
Connector Diameter	7,9 x 6,3 mm
Protection Degree	IP66/IP67
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	55 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Copper Alloy
Remark	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Contact Type	Straight PCB contacts

Article Number	Z309FM C 04 00 0000
Color	Yellow
Connector Diameter	8,5 x 7,3 mm
Protection Degree	IP66/IP67
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	56 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Copper Alloy
Remark	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Contact Type	Straight PCB contacts

Article Number	Z809FM C 04 00 0000
Color	Black
Connector Diameter	9,7 x 9,7 mm
Protection Degree	IP66/IP67
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	57 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Copper Alloy
Remark	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Contact Type	Straight PCB contacts

Eigenschappen verschillen tussen varianten en subvarianten
