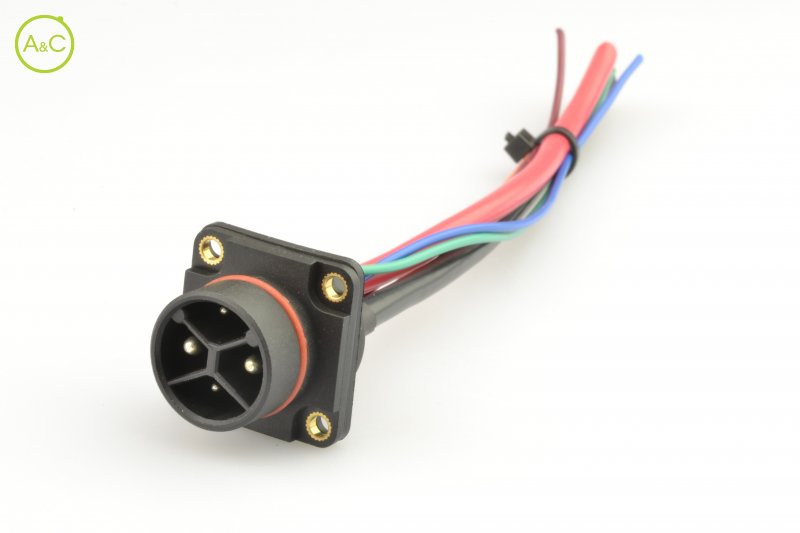

Battery male panel mount connector 48V code, no locking (push-on)

Only for use in 48V applications

Z624BG C 03 D1 0150

Z624BG C 03 D1 0150

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Meer info over dit merk:

Number Of Poles

6

Article Number	Z624BG C 03 D1 0150
Color	Black
Connector Diameter	28.5 mm
Wire Section	2 x 2,0 + 4 x 0,34 mm²

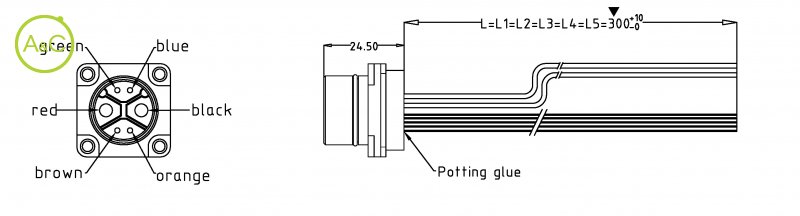

Cable Length	Single wires 300 mm
Protection Degree	IP67
Mating Cycles	3000 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Phosphor bronze
Remark	Other cable length/type on request
Rated Current	25 / 5 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel

Eigenschappen verschillen tussen varianten en subvarianten
