IDC connectors with double-contacting

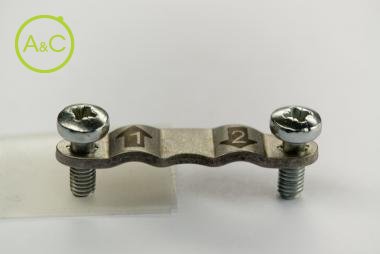

Strain relief bracket

ZEB 09

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

Number Of Poles

9
15
25
37
50

Article Number	ZEB 09
Number Of Contacts	9
Upper Temperature	+ 125 °C
Lower Temperature	-55 °C
Contact Plating	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy
Test Voltage	1 V ~
Insulation Resistance	1010 MΩ
Extra Information	UL approval useful for difficult contacting in the cutting/fixing area
Current Rating	5
Contact Resistance	≤ 10 m
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated
Termination Type	IDC
Bracket	Plastic

Article Number	ZEF 15
Number Of Contacts	15
Upper Temperature	+ 125 °C
Lower Temperature	-55 °C
Contact Plating	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy
Test Voltage	1 V ~
Insulation Resistance	1010 MΩ
Extra Information	UL approval useful for difficult contacting in the cutting/fixing area
Current Rating	5
Contact Resistance	≤ 10 m
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated
Termination Type	IDC
Bracket	Spring steal

Article Number	ZEF 25
Number Of Contacts	25
Upper Temperature	+ 125 °C
Lower Temperature	-55 °C
Contact Plating	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy
Test Voltage	1 V ~
Insulation Resistance	1010 MΩ
Extra Information	UL approval useful for difficult contacting in the cutting/fixing area
Current Rating	5
Contact Resistance	≤ 10 m
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated
Termination Type	IDC
Bracket	Spring steal

Article Number	ZEF 37
Number Of Contacts	37
Upper Temperature	+ 125 °C
Lower Temperature	-55 °C
Contact Plating	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy
Test Voltage	1 V ~
Insulation Resistance	1010 MΩ
Extra Information	UL approval useful for difficult contacting in the cutting/fixing area
Current Rating	5
Contact Resistance	≤ 10 m
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated
Termination Type	IDC
Bracket	Spring steal

Article Number	ZEB 50
Number Of Contacts	50
Upper Temperature	+ 125 °C
Lower Temperature	-55 °C
Contact Plating	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy
Test Voltage	1 V ~
Insulation Resistance	1010 MΩ
Extra Information	UL approval useful for difficult contacting in the cutting/fixing area
Current Rating	5
Contact Resistance	≤ 10 m
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated
Termination Type	IDC
Bracket	Plastic

Eigenschappen verschillen tussen varianten en subvarianten
