Configurable power supplies from Delta for medical and industrial applications

09 June 2020

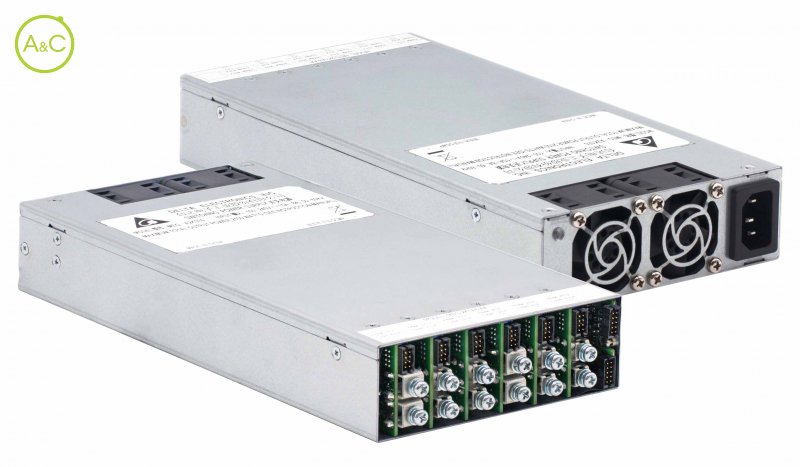

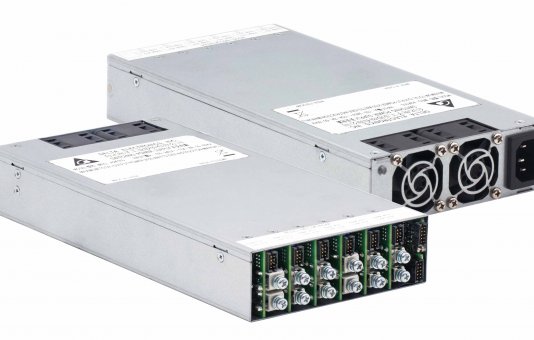

Delta launches the MEG series, a new series of configurable power supplies designed for both medical and industrial applications. The first release of MEG series is MEG-2K1A6 with a total output power of 2.1 kW that can support up to 6 isolated outputs.

The outputs can be configured between 2Vdc to 60Vdc and output current up to 45A with a single slot/single output module. The MEG series come with universal AC input from 90Vac to 264Vac and wide operating temperature of -20°C to +70°C.

Additional features include:

  • current sharing
  • intelligent fan speed control
  • PC GUI for easy parameter setting and monitoring

Communication adapters are also available to convert PMBus to USB, RS232 or RS485 according to the system requirement.

Major approvals include IEC/EN/UL 60601-1 (Medical) and IEC/EN/UL/CSA 60950-1 (ITE).

For a complete overview of the technical specs, please click on the button below or contact our power supply specialists.

Download datasheet
