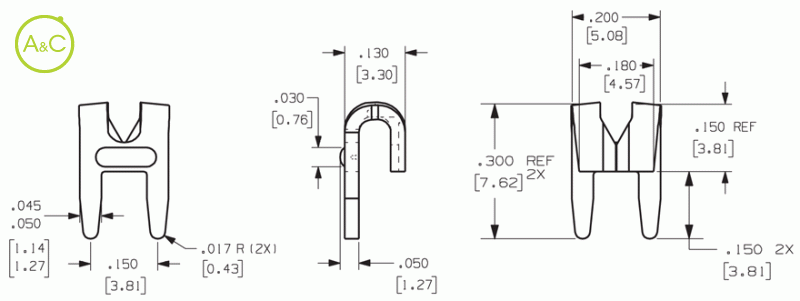

IDC (Insulation Displacement Connector) For #24-18 AWG Wire
Do you have any questions about this product?
More info on this brand:
Zierick
Zierick
Packaging
- Loose
- Reeled
| Article Number | 1119 |
| Extra Description | 30 Amperes |
| Material Thickness / Type | 0.032" (0.81mm) C26000 Brass |
| Standard Finish | 100% Tin over Copper |
| Current Rating | 30 Amperes |
| Applicator System | Loose:WTP-4ALL Reeled: Model 9700, 9700 XY Wire Termination: Consult factory. |
| Mounting Type | Outward or Inward Splay 0.062" (1.57mm) thick PCB |
| Mounting Hole Diameter | 2 holes 0.058" ±0.003" (1.47mm ±0.076) on 0.150" (3.81mm) centers |
| Wire Gauge Range | #24-18 AWG |
| Pieces Per Reel (loose Part No.) | NA |
| Pieces Per Reel (reeled Part No.) | / |
| Product sheet | Download product sheet |
Characteristics differ between variants of a connector
