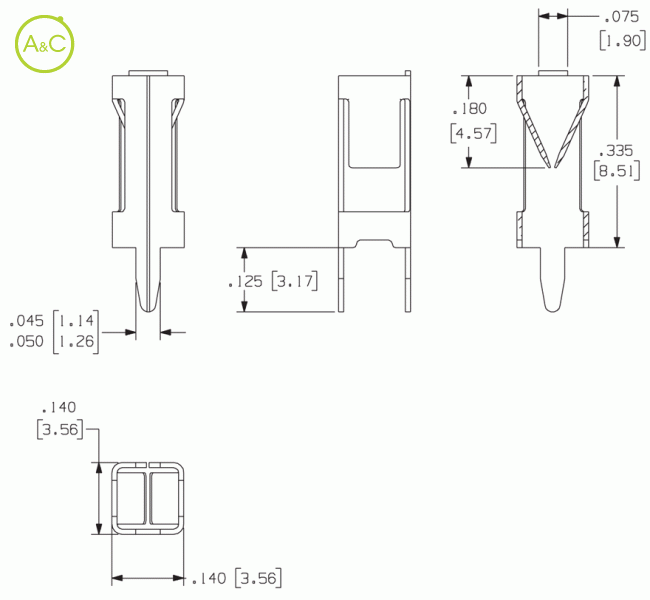

Top Entry 2 Beam Box Receptacles
Do you have any questions about this product?
More info on this brand:
Zierick
Zierick
Packaging
- Loose
- Reeled
| Article Number | 1187 |
| Mating Terminal Size | 0.025" to 0.095" (0.64mm to 2.41mm) round or square and 0.032" x 0.110" Blade |
| Material Thickness / Type | 0.010" (0.25mm) C51000 Phosphor Bronze |
| Standard Finish | 100% Tin over Copper |
| Current Rating Ul | 10 Amperes |
| Current Rating C-ul | 10 Amperes |
| Ul File Number | E361770 |
| Applicator System | Reeled: Model 9700, 9700 XY |
| Mating Type | Vertical |
| Mounting Type | Outward Splay |
| Mounting Hole Diameter | 2 holes 0.050" ±0.003" (3.81mm ±0.076mm) on 0.130" ±0.003" (3.302mm ±0.003mm) centers |
| Resistance Rating | 10mOhm Max |
| Mating Entry | Top |
| Temperature Rating | -65° to 105°C |
| Insertion Force-max. | Application Dependent / Submit Mating Terminal Sample to Factory. |
| Withdrawal Force-max. | Application Dependent / Submit Mating Terminal Sample to Factory. |
| Pieces Per Reel (loose Part No.) | NA |
| Pieces Per Reel (reeled Part No.) | / |
| Product sheet | Download product sheet |
Characteristics differ between variants of a connector
