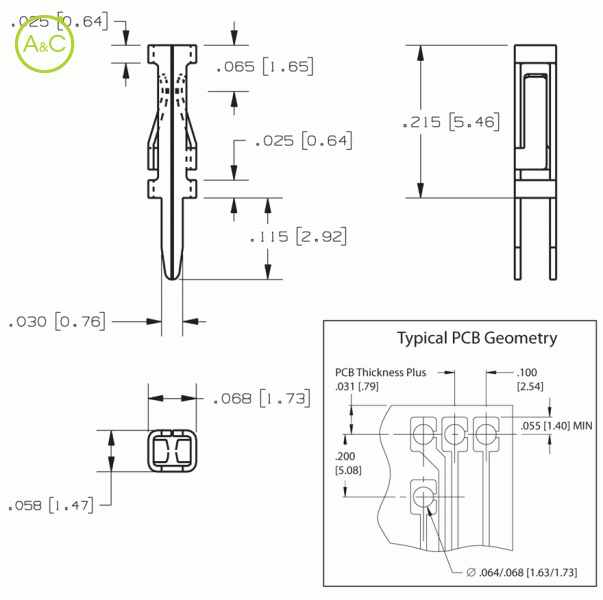

0.025" (0.64mm) Box Receptacles - Bottom Entry
Do you have any questions about this product?
More info on this brand:
Zierick
Zierick
- General
| Article Number | 6100 |
| Packaging | Reeled |
| Mating Terminal Size | 0.025" (0.64mm) Rd. or Sq. |
| Material Thickness / Type | 0.008" (0.20mm) C51000 Phosphor Bronze |
| Standard Finish | 100% Tin over Copper |
| Current Rating Ul | 3 Amperes |
| Current Rating C-ul | 3 Amperes |
| Ul File Number | E361770 |
| Applicator System | Model 9700, 9700 XY |
| Mating Type | Vertical |
| Mounting Type | Outward Splay |
| Resistance Rating | 10mOhm Max |
| Mating Entry | Bottom |
| Temperature Rating | -65° to 105°C |
| Insertion Force-max. | Application Dependent / Submit Mating Terminal Sample to Factory |
| Withdrawal Force-max. | Application Dependent / Submit Mating Terminal Sample to Factory |
| Pieces Per Reel (reeled Part No.) | 10000 |
| Product sheet | Download product sheet |
Characteristics differ between variants of a connector
