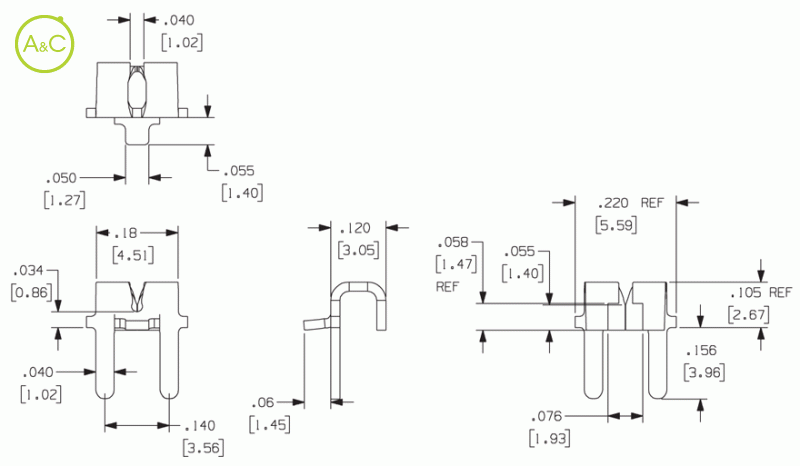

IDC (Insulation Displacement Connector) For #30-26 AWG Wire
Do you have any questions about this product?
More info on this brand:
Zierick
Zierick
- General
| Article Number | 6114 |
| Packaging | Reeled |
| Extra Description | With 2 holes |
| Material Thickness / Type | 0.020" (0.51mm) C26000 Brass |
| Standard Finish | 100% Tin over Copper |
| Current Rating | 10 Amperes |
| Applicator System | Loose: ZPT-1114 Reeled: Model 9700, 9700 XY Wire Termination: Consult factory. |
| Mounting Type | Outward or Inward Splay Surface Mount Solder 0.062" (1.57mm) thick PCB |
| Mounting Hole Diameter | 2 holes 0.050" ±0.003" (1.27mm ±0.076mm) on 0.140" (3.56mm) centers |
| Wire Gauge Range | #30-26 AWG |
| Pieces Per Reel (reeled Part No.) | 6500 |
| Product sheet | Download product sheet |
Characteristics differ between variants of a connector
