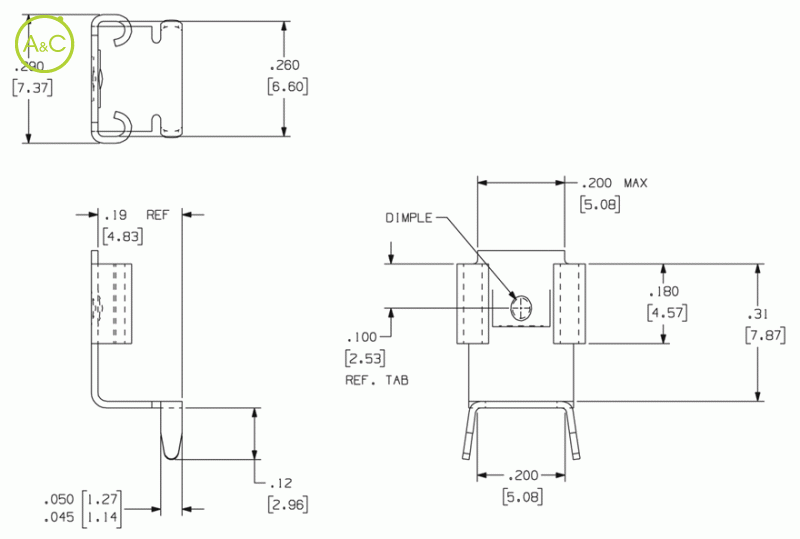

0.250” (6.35mm) Tab Receptacles
Do you have any questions about this product?
More info on this brand:
Zierick
Zierick
Current Rating
- 10 Amperes
- 15 Amperes
| Article Number | 983 |
| Packaging | Loose |
| Mating Terminal Size | 0.250" x 0.016" (6.35mm x 0.41mm) Tin/Brass Male |
| Material Thickness / Type | 0.015" (0.38mm) C26000 Brass |
| Standard Finish | 100% Tin over Copper |
| Mating Type | Vertical |
| Mounting Type | Outward or Inward Splay |
| Mounting Hole Diameter | 2 holes 0.058" ±0.003" (1.473mm ±0.076mm) on 0.200" ±0.005" (5.08mm ±0.127mm) centers |
| Resistance Rating | 10mOhm Max |
| Mating Entry | Top Side |
| Temperature Rating | -65° to 85°C |
| Pieces Per Reel (loose Part No.) | NA |
| Product sheet | Download product sheet |
Characteristics differ between variants of a connector
