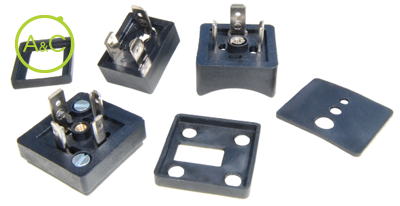

Style B-ind rectangular receptacle connector
Do you have any questions about this product?
More info on this brand:
Shield
Shield
Number Of Poles
- 2+G
| Article Number | VR11 02A0S | VR11 02A1S |
| Number Of Contacts | 2+G | 2+G |
| Protection Degree | IP65 | IP65 |
| Upper Temperature | +125 °C | +125 °C |
| Lower Temperature | -40 °C | -40 °C |
| Housing Material | PA66 30%GF | PA66 30%GF |
| Housing Oil Resistance | Occasional contact | Occasional contact |
| Contact Material | Nickel plated CuZn | Nickel plated CuZn |
| Max. Wire Section | 1 mm² | 1 mm² |
| Voltage Vdc | 1 to 250 | 1 to 250 |
| Voltage Vac | 1 to 250 | 1 to 250 |
| Max. Currrent | 10 A @40°C | 10 A @40°C |
| Included Accessories | 1 central screw 1 screw M3x8 1 profile gasket | 1 central screw 1 screw M3x8 1 profile gasket |
Characteristics differ between variants of a connector
